Ex college machine
YOM 2013
Max turning dia 203mm
Max turning length 762mm
Spindle speeds 20-2000rpm
Hollow spindle 58mm
Turret type & No of tool stations 2
Tailstock (YorN) Y
No. of axes 2
Total Power HP/KW 7.5kW
Like new condition
(OMF grease on the main rack)

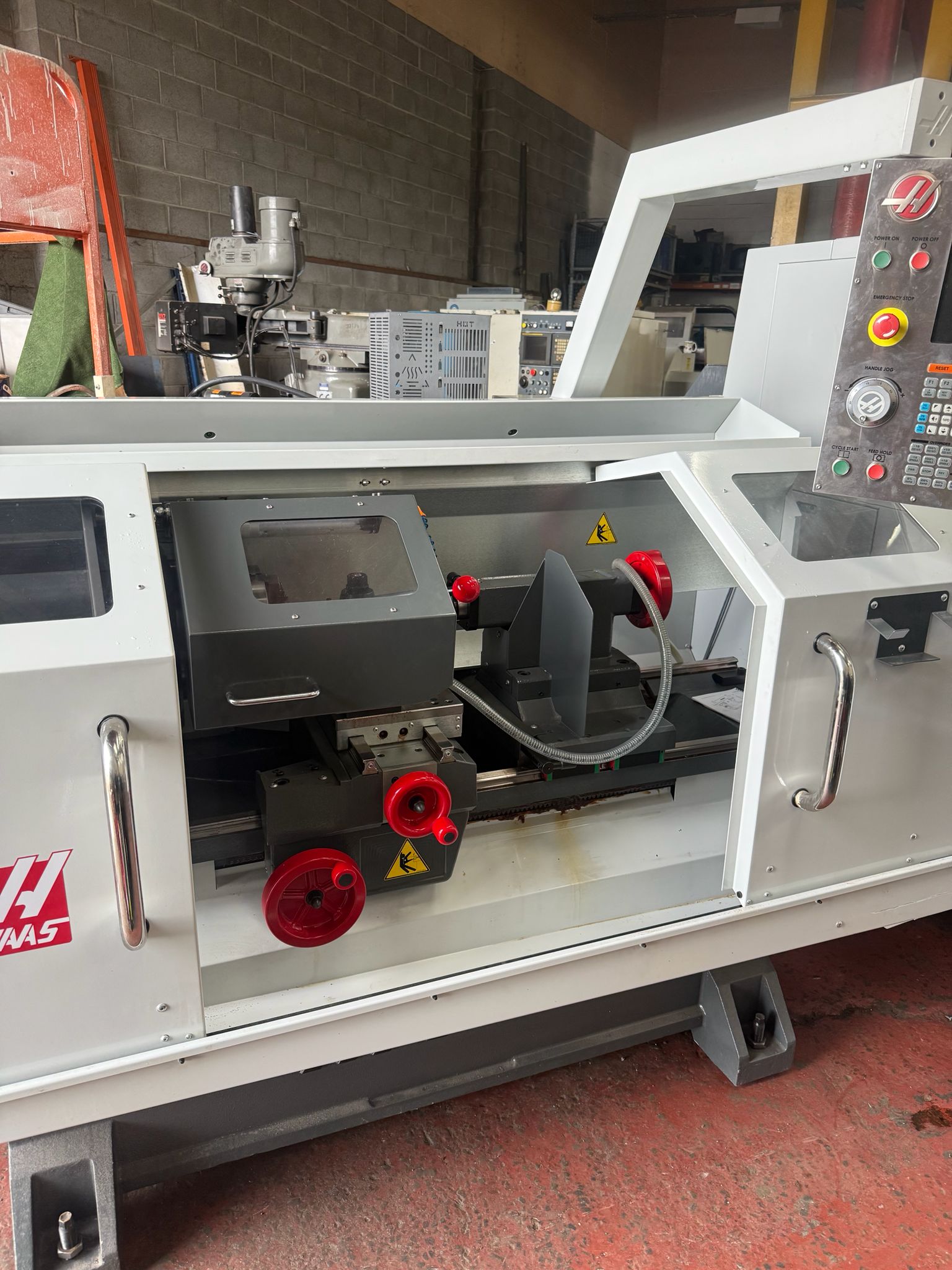

The Haas TL-1 is a compact CNC toolroom lathe designed to provide the flexibility of CNC machining alongside the accessibility of a conventional toolroom machine. It is well suited to prototype work, small-batch production, toolmaking and general engineering applications.
The machine features a 762mm distance between centres and a 406mm swing over the front apron, providing useful capacity for a wide range of components. It is equipped with a 203mm 3-jaw chuck and has a spindle speed range of up to 2,000 RPM.
The Haas TL-1 is fitted with a Haas CNC control system and offers a practical solution for workshops looking for CNC turning capability without the footprint of a larger production lathe.
If you are looking for a versatile used CNC lathe for toolroom work, prototyping, small-batch production or general engineering, the Haas TL-1 offers a capable and flexible solution.
Contact Blue Diamond Machine Tools for further information, pricing or to arrange a viewing of this Haas TL-1.
