Specification
Table size (swing over bed): 1,270 mm × 254 mm (50″ x 10″)
X-axis travel: 750 mm (~30″)
Y-axis travel (cross): 384 mm (~15″)
Z-axis (knee) travel: 406 mm (~16″)
Ram travel: 450 mm
Quill travel: 127 mm (~5″)
Spindle speeds: 75–4,200 rpm (variable-speed head)
Spindle motor: 2.25 kW (3 hp)
Spindle taper: R8
Approx Dimensions & Weight
Footprint: ~1,880 × 1,750 × 2,220 mm (L×W×H)
Weight: ~1,350 kg

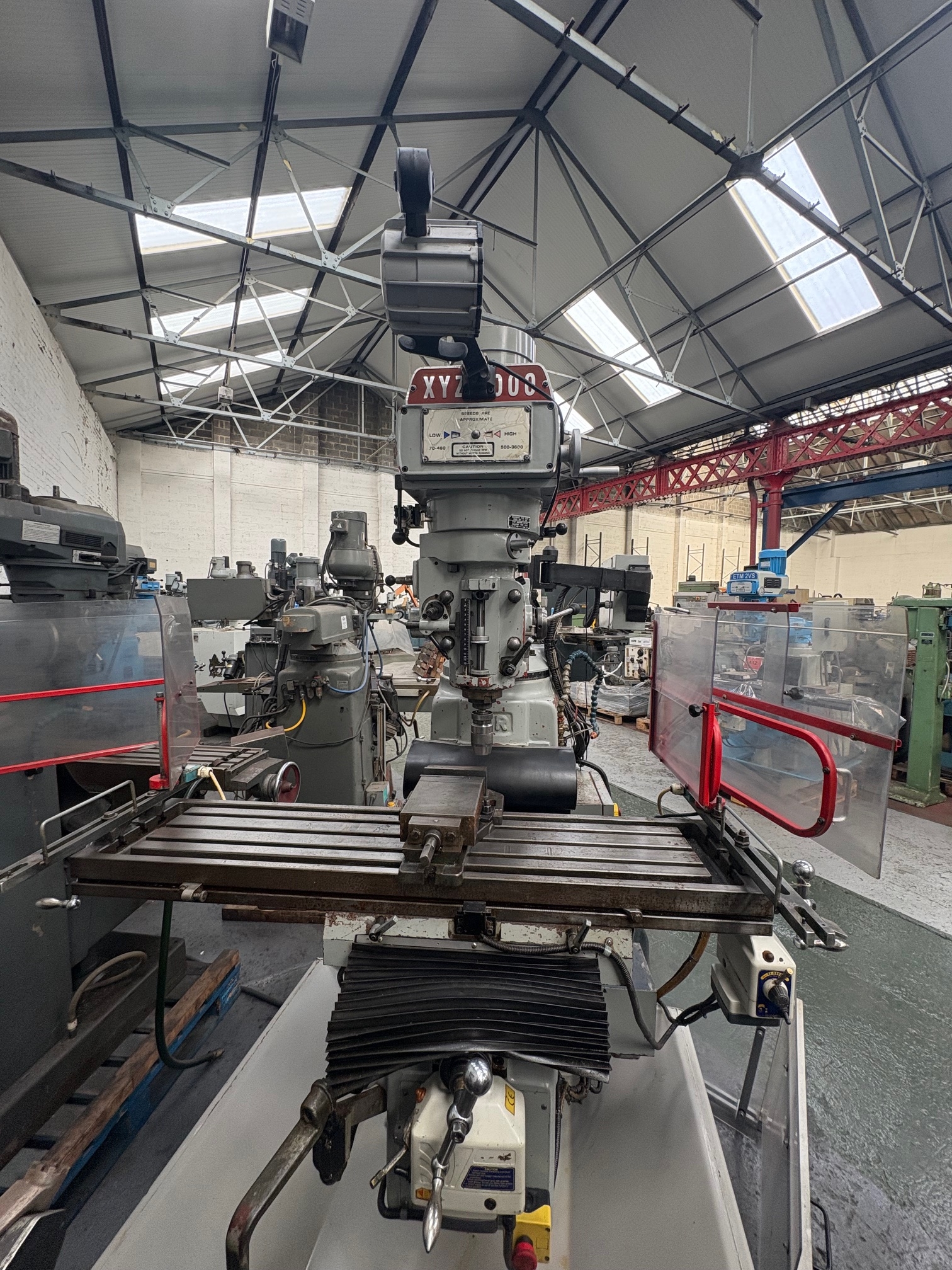

The XYZ 2000 Turret Mill is a highly capable vertical milling machine designed for precision machining and versatile workshop use. Its sturdy construction and well-balanced feature set make it ideal for general engineering, fabrication, prototype work, and production tasks where accuracy and reliability matter.
Key Specifications & Features
Generous Worktable – Large 1,270 mm × 254 mm (50″ × 10″) table provides plenty of space for fixtures, vices, and workpieces of varying sizes.
Ample Axis Travels – With 750 mm (X), 384 mm (Y), and 406 mm (Z) travel, this mill handles a broad range of milling operations with ease.
Powerful Variable-Speed Spindle – The 2.25 kW (3 hp) spindle offers a variable speed range up to ~4,200 rpm, giving flexibility for different cutter types and materials.
R8 Spindle Taper – Standard R8 tooling compatibility provides excellent tooling options.
Knee & Ram Travel – Adjustable knee travel and ~127 mm quill travel bring added control for depth of cut and drilling tasks.
Built-In Work-Supporting Features – Designed with ample clearance, a robust knee, and a rigid column to support heavier milling loads with stability and durability.
Why Choose the XYZ 2000?
The XYZ 2000 combines practical capacity with everyday workshop performance. Its generous table and travel dimensions, combined with a flexible spindle speed range, mean it’s suited to everything from routine facing and slotting to more complex profiling tasks. It’s a versatile choice for metalworkers, toolroom environments, maintenance workshops, and small production shops seeking reliable milling capability.
