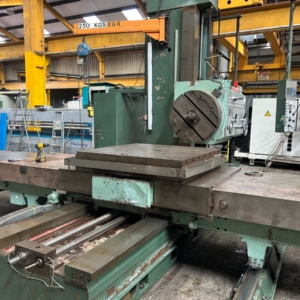

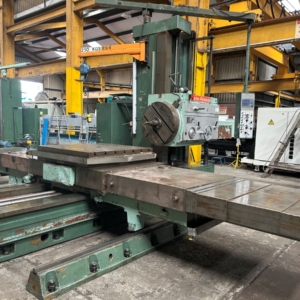

Kearns Richards SF100 Table Type Horizontal Borer

MODEL:           SF100

SERIAL No:     6889

Capacities:

Spindle Dia:                                             100mm

Spindle Speeds:                                        22 – 1120rpm

Spindle Taper:                                         50 Int

Spindle Traverse:                                    750mm

Heavy Duty Milling Quill Dia:               225mm

Facing Head Diameter:                           810mm

Facing Slide Traverse:                           190mm

Facing Head Speeds:                              2.2 – 224rpm

Rotary Table Size:                                 1200 x 1200mm

Longitudinal Traverse:                          1350mm

Cross Traverse:                                     1200mm

Vertical Traverse:                                 1186mm

Feed Rates:  (3 Ranges):                       1.3 – 3820mm/min

Spindle Motor:                                     18.5kw

Electrics:                                              415v, 3ph, 50 Cycles

Complete with:

Newall DP700 3 Axis DRO

Steel Telescopic Guards to Long & Cross Traverse

Facing Slide Tool Holder

Manual Rotary Table

Approximate Dimensions:          6150 x 4700 x 4000mm

Approximate Weight:                 25000kg
