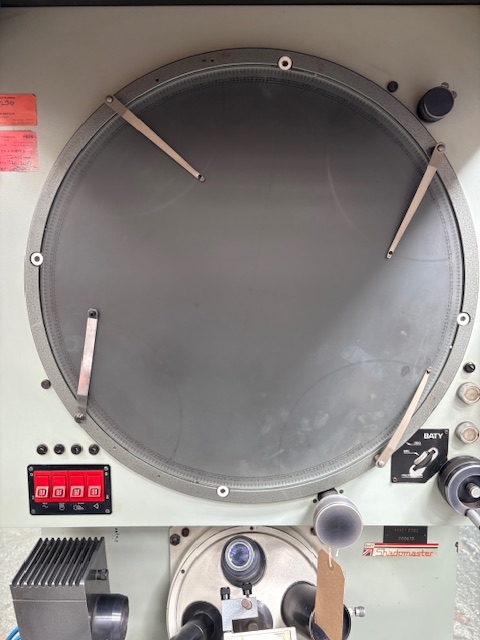

550mm diameter screen
Digital Display both X & Y axis
Digital angle measurement
Profile illumination with fan cooled lamphouse
Lens for x10; x20; x50 and 100x Manual focus system

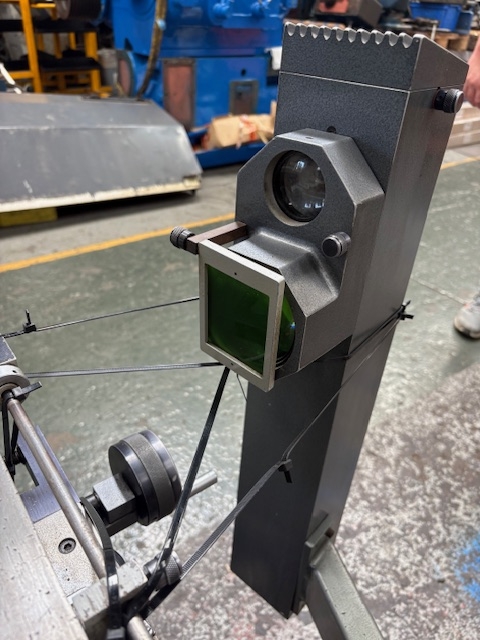

Green filter
Precision workstage with 200mm x 220mm measuring range
Curtain and Canopy

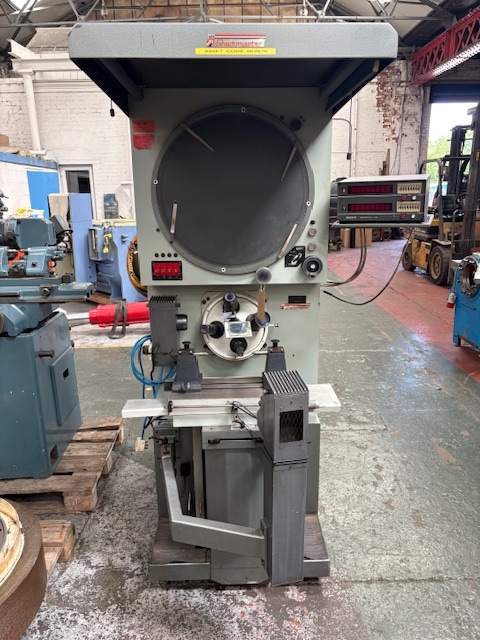

The Baty Shadowmaster Type 202A is a precision optical inspection and measurement machine designed for accurate checking of component profiles, dimensions and forms. Manufactured by Baty, a well-established name in optical measurement and inspection equipment, the Shadowmaster provides a practical solution for engineering workshops, inspection departments and manufacturing environments.
Profile projectors allow components to be inspected using an enlarged optical image, making it possible to accurately examine intricate profiles, angles, radii, threads and other component features. This makes the Baty Shadowmaster particularly useful for tool inspection, quality control and precision engineering applications.
The Type 202A offers a straightforward and effective method of carrying out dimensional inspection without the need for complex coordinate measuring equipment. Its optical projection system provides clear magnification of the workpiece profile, allowing operators to compare components against drawings, templates or measurement references.
The Baty Shadowmaster Type 202A for sale is an excellent option for engineering businesses looking for reliable and straightforward optical inspection equipment. As a used Baty profile projector, it offers an economical way to introduce or expand inspection capabilities within a workshop.
For further information, machine specifications, availability or to arrange a viewing, please contact Blue Diamond Machine Tools Ltd.
