Machine type CNC Surface Grinder
Grinding capacity: 450 × 150 mm
Maximum longitudinal travel: 450 mm
Maximum cross travel: 150 mm
Maximum distance table to wheel: 400 mm
Table size: Approximately 450 × 150 mm
Maximum workpiece height : 400 mm
Wheel bore: 31.75 mm
Spindle speed: 1,000–4,000 rpm (variable)
Spindle motor: 2.2 kW
Table feed: Infinitely variable, approximately 1–25 m/min
Control: Allen-Bradley 8600
Power supply 415 V, 3-phase, 50 Hz

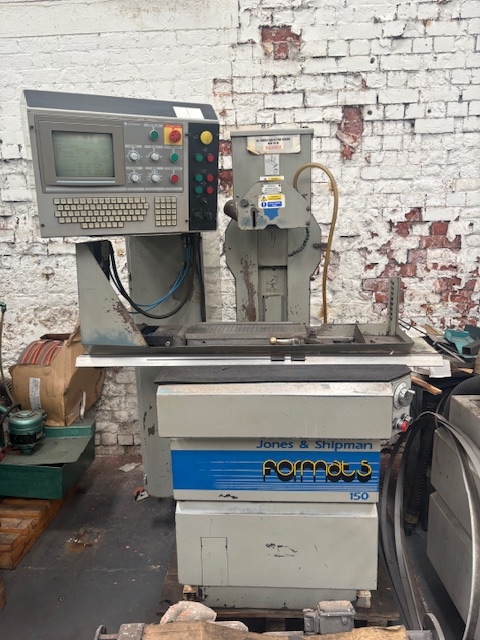

The Jones & Shipman Format 150 is a CNC surface grinding machine designed to provide accurate, repeatable grinding performance for engineering and manufacturing applications. Manufactured by Jones & Shipman, a renowned name in precision grinding machinery, the Format 150 combines CNC control with a compact and capable grinding platform.
The machine offers a 450 x 150mm grinding capacity, with 450mm of maximum longitudinal travel and 150mm of maximum cross travel. A maximum distance of 400mm between the table and wheel provides additional flexibility when machining a range of components and workpieces.
The Format 150 is fitted with an Allen-Bradley 8600 CNC control, allowing automated control of the grinding process and making the machine well suited to applications requiring consistent and repeatable results. The spindle has a variable speed range of 1,000–4,000 rpm, driven by a 2.2kW spindle motor, while the table feed is infinitely variable at approximately 1–25 m/min.
The Jones & Shipman Format 150 CNC surface grinder for sale is an excellent option for engineering companies and manufacturers looking for accurate CNC grinding capability. With its substantial working capacity, variable-speed spindle and Allen-Bradley CNC control, this used Jones & Shipman surface grinder offers a versatile solution for precision grinding applications.
For further information, availability or to arrange a viewing, please contact Blue Diamond Machine Tools Ltd.
